Threshold Cables

Overview:

The cable, models 4411, 4421 and 4431 are designed for connecting any type of electrode plug for temporary or permanent epimiocardic or endocavitary stimulation to any type of device designed to detect the stimulation and sensing thresholds. The length of cable, supplied sterile, is 200 cm which enables the measuring device to be kept at a distance from the sterile field.

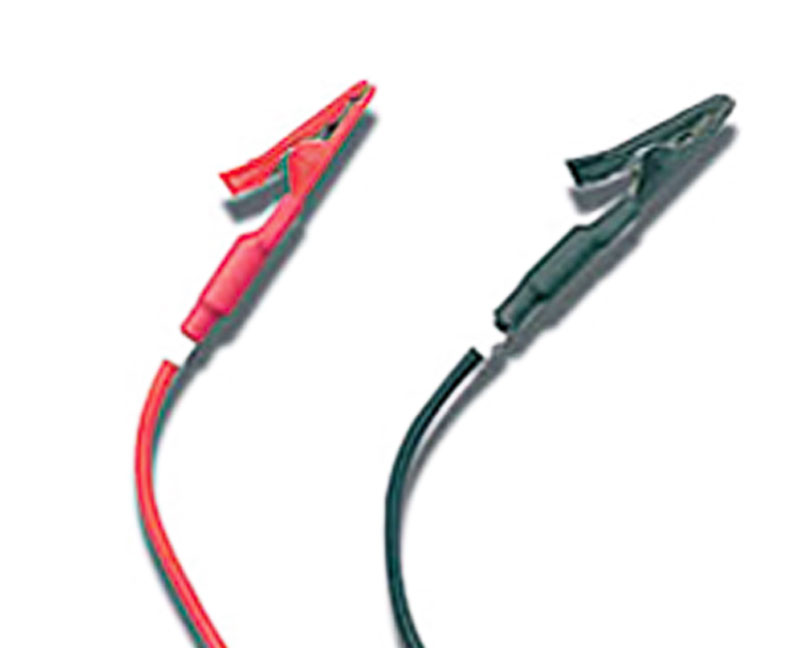

The model 4411 cable consists of a pair of flexible copper cables sheathed in grey polyurethane. One of the cables can be connected by a 2mm red plug with protective cap at one end and a red protected alligator clip at the other. The second cable has a 2mm black plug with protective cap and a black protected alligator clip.

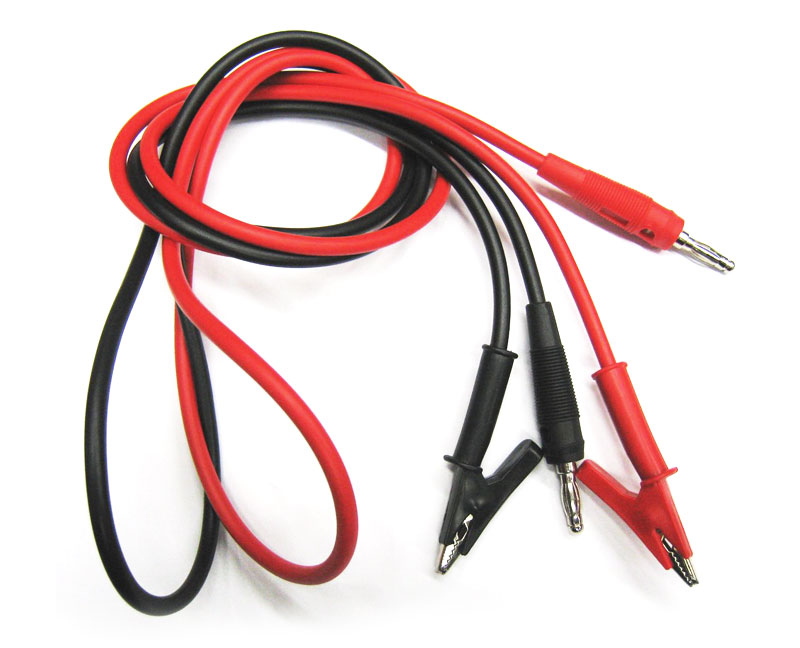

The model 4421 cable consists of a pair of flexible copper cables sheathed in grey polyurethane. One of the cables can be connected by a 2mm shrouded red plug with touch proof connector at one end and a red protected alligator clip at the other. The second cable has a 2mm shrouded black plug with touch proof connector and a black protected alligator clip.

The model 4431 cable consists of a pair of flexible copper cables sheathed in grey polyurethane. The cable can be connected by a Redel connector at one end and red and black protected alligator clips at the other.

Contact APC Cardiovascular for more information on the full range of Threshold Cables.
